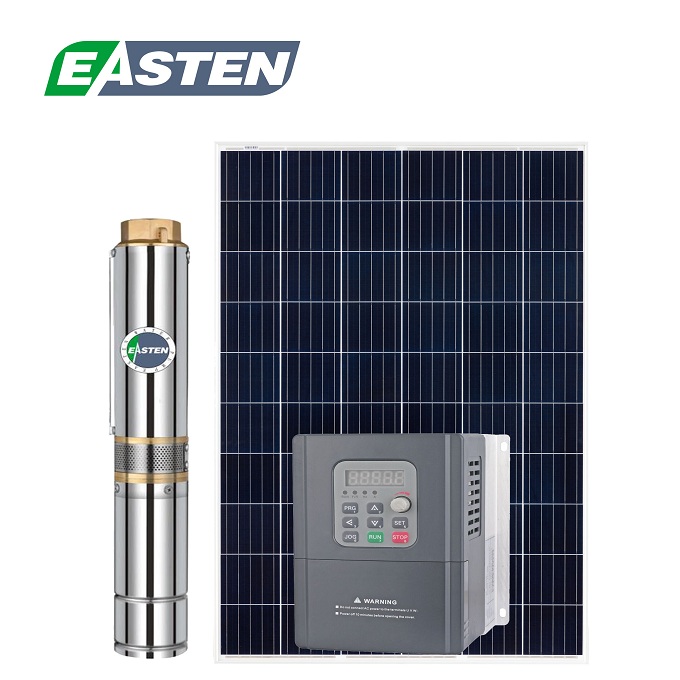

ET-4SC-9.5 Brushless Solar Pump with pastic impeller

Short Description:

ET-4SC-9.5 Brushless Solar Pump use solar energy to pump and transport water , Application: for domestic water supply, agricultural irrigation, garden use. Model : ET-4SC-9.5 series Brand : EASTEN

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

ET-4SC-9.5 Brushless Solar Pump use solar energy to pump and transport water ,

Application: for domestic water supply, agricultural irrigation, garden use.

Model : ET-4SC-9.5 series

Brand : EASTEN

Solar Pump Advantages

1.Permanent magnet DC brushless synchronous motor , efficiency improved 20%.

2.304 SS rotator shaft . Oil Chamber use brass or iron for option.

3.NSK bearing , the working life will be 3 to 5 times prolonged

4.Environmental protection, clean energy , can be powered by both solar panel and battery

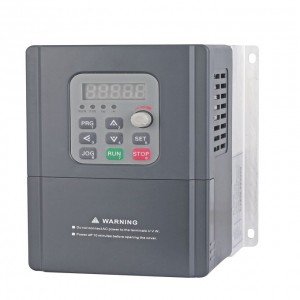

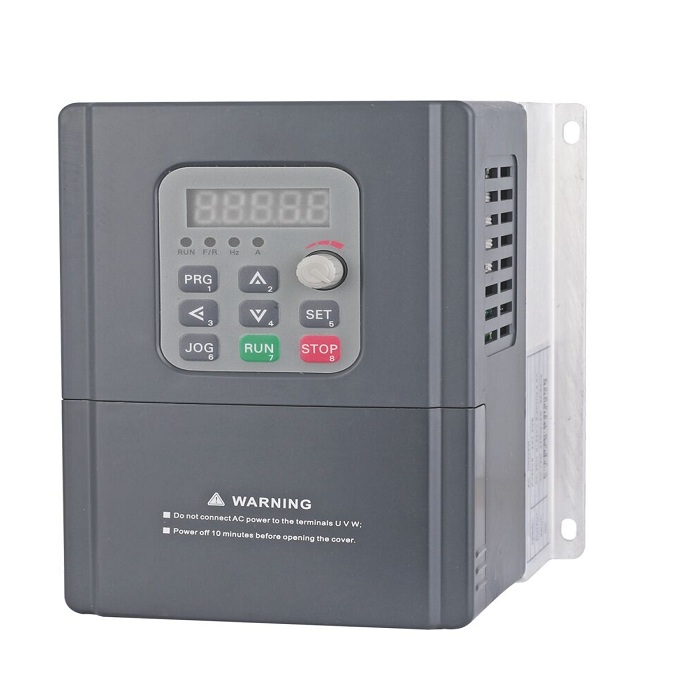

5.DC pump controller with MPPT function

6.Much longer life than the normal AC water pump

7.Over-load protection , Under- load protection .

Technical Data

NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar Panel
NAME	Model		Voltage	Best imput Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	open volatage	Power
ET-4SC Brushless Solar Pump with pastic impeller	82	ET-4SC9.5-71-220/300-1500-A/D	AC220/DC300V	300V-400V	1500W	9.5m³/h	71m	2″	2m	＜450V	≥2000W
	83	ET-4SC9.5-125-220/300-2200-A/D	AC220/DC300V	300V-400V	2200W	9.5m³/h	125m	2″	2m	＜450V	≥2000W
	84	ET-4SC9.5-125-380/550-2200-A/D	AC380/DC550V	480V-750V	2200W	9.5m³/h	125m	2″	2m	＜800V	≥3000W
	85	ET-4SC9.5-195-380/550-3000-A/D	AC380/DC550V	480V-750V	3000W	9.5m³/h	195m	2″	2m	＜800V	≥4000W
	86	ET-4SC9.5-250-220/300-4000-A/D	AC220/DC300V	480V-750V	4000W	9.5m³/h	250m	2″	2m	＜800V	≥5000W
	87	ET-4SC13-60-220/300-1500-A/D	AC220/DC300V	300V-400V	1500W	13m³/h	60m	2″	2m	＜450V	≥2000W
	88	ET-4SC13-110-220/300-2200-A/D	AC220/DC300V	300V-400V	2200W	13m³/h	110m	2″	2m	＜450V	≥3000W
	89	ET-4SC13-110-380/550-2200-A/D	AC380/DC550V	480V-750V	2200W	13m³/h	110m	2″	2m	＜800V	≥3000W
	90	ET-4SC13-150-380/550-3000-A/D	AC380/DC550V	480V-750V	3000W	13m³/h	150m	2″	2m	＜800V	≥4000W
	91	ET-4SC13-185-380/550-4000-A/D	AC380/DC550V	480V-750V	4000W	13m³/h	185m	2″	2m	＜800V	≥5000W
	92	ET-4SC17-112-380/550-3000-A/D	AC380/DC550V	480V-750V	3000W	17m³/h	112m	2″	2m	＜800V	≥4000W
	93	ET-4SC17-150-380/550-4000-A/D	AC380/DC550V	480V-750V	4000W	17m³/h	150m	2″	2m	＜800V	≥5000W
	94	ET-4SC20-98-380/550-4000-A/D	AC380/DC550V	480V-750V	4000W	20m³/h	98m	2″	2m	＜800V	≥5000W
